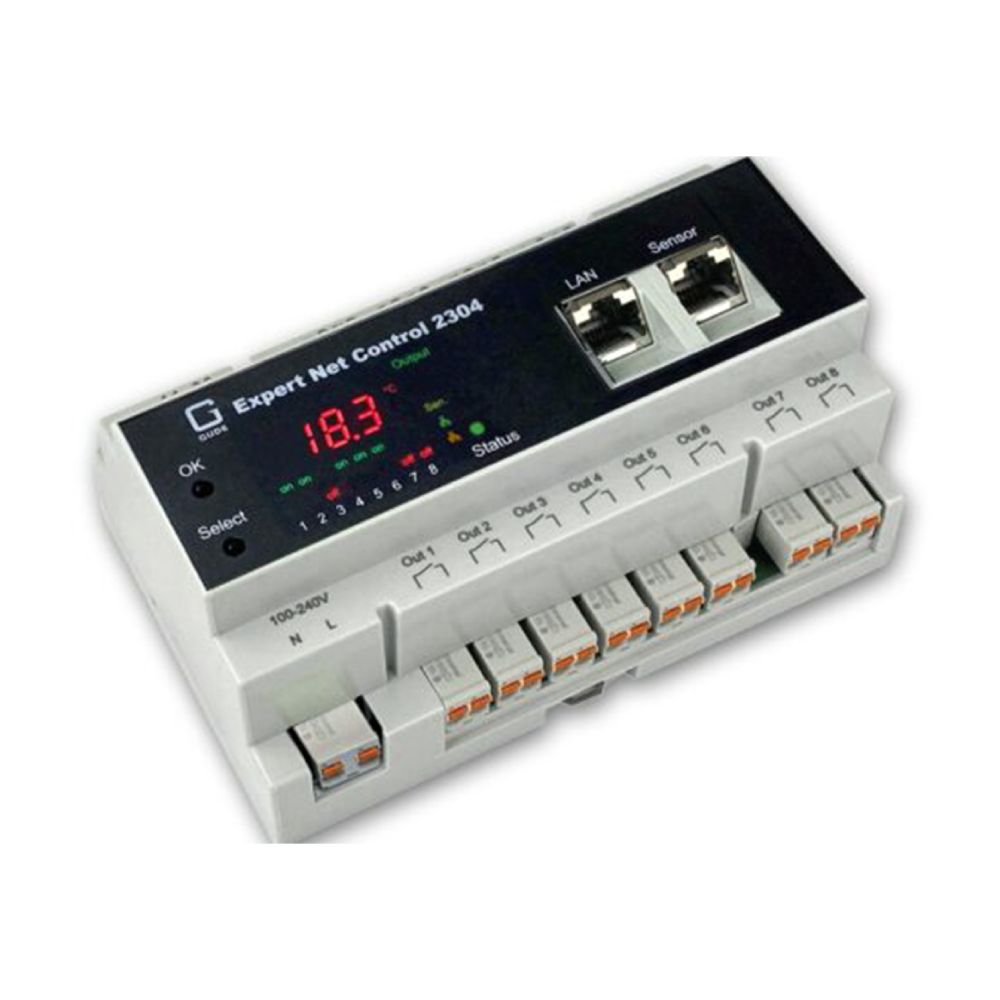

GUDE IP reläkontroll, 8 kanaler, 8 input

Styrbar I/O med 8 omkopplingsbara reläutgångar och 8 passiva signalingångar för DIN-skena.

Key Features

• Event and schedule controlled switching
• Signal inputs for polling NO/NC devices (e.g. door contact, smoke detector etc.)
• 1 connector for plug-and-play sensors for real-time monitoring
• Easy and fast mounting on mounting rails with top hat profile
• NTP function can be activated
• More flexibility through Radius, Modbus TCP and MQTT 3.1.1 support

Switching function

• Each power port can be switched via HTTP(S), SNMP, ModbusTCP or command line interface via Telnet, SSH, MQTT and serial interface
• Programmable on/off sequences for remote reboots (Remote Reboot)
• Power ports can be switched when preset sensor thresholds are exceeded
• Self-healing function thanks to 8-channel watchdog: Each power port can be assigned its own Watchdog (ICMP/TCP), which initiates an automatic restart if necessary
• Switching state and switch-on delay up to 9999 seconds (166 minutes) individually adjustable for each output port after power failure
• Current peaks due to increased inrush currents are automatically prevented by sequential switch-on with a latency of 1 second


Se produktblad för mer info!
